Fujitsu Ten ECLIPSE OWNER'S MANUAL / CD3200

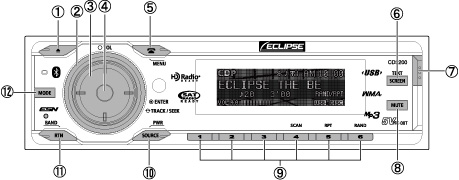

No. | Button | Name/Working |
---|---|---|
[ (OPEN/EJECT)] button Opens/closes front panel and ejects CD. | ||
[VOL] button Adjusts volume. | ||
[SELECT] button Selects radio station and CD tracks.Selects setting items. | ||
[ENTER] button Enters selected item. | ||
[/MENU] button Switches to the [TEL] mode.Switches to the Menu Selection mode. | ||
[SCREEN/TEXT] button Switches the screen pattern.Switches the title display. |
No. | Button | Name/Working |
---|---|---|
[Release] button Detach the right end of the front panel from the body of the main unit. | ||
[MUTE] button Activates and deactivates mute. | ||
Buttons [1] to [6] Selects radio preset channels and performs disc mode functions. | ||
[SOURCE/PWR] button Switches audio mode.Turn the power on or off. | ||
[RTN/BAND] button Returns to previous screen.Switches radio band. | ||
[MODE] button Switches to rotary mode. |
No. | Name/Working |
---|---|
Disc slotInserts compact discs. |
