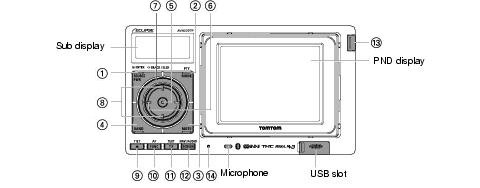

[SOURCE/PWR] button

Pressing briefly:
Switches among items in the audio mode.

Press and hold (more than one second):
Turns the audio mode OFF.

Press and hold (more than 5 seconds):
Turns the power completely OFF.

[MODE/PTY] button

Pressing briefly:
Switches to the preset channel select mode or CD track select mode (Hereafter, the "preset channel select mode" and "CD track select mode" are referred to as "rotary select mode".)

Press and hold:
Switches the PTY selection at each pressing of the button.

[MUTE] button

Activates and deactivates mute.

[BAND] button

Switches radio bands.

[ENTER] button

Enters the selected item. Activates and switches the audio control mode.

[SELECT (Right/Left)] button

Selects radio station , CD tracks, USB music files and iPod music files.

In the function mode, selects setting items.

[VOL] rotary knob

Adjusts the volume.

In the rotary select mode, used to select the item you want.

[SELECT (Upper/Lower)] button

Selects the folder in the CD (MP3/WMA) mode.

[ (OPEN/EJECT)] button

Pressing briefly:

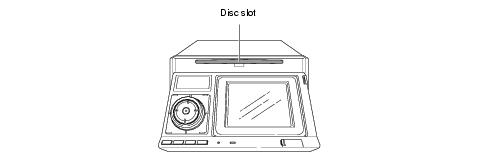

Ejects the disc or opens/closes the front panel.

Press and hold:
Tilts the front panel by one step at each pressing of the button.

[FUNC/AF] button

Pressing briefly:
Switches the items in the FUNCTION mode at each pressing of the button.

Press and hold:
Switches AF and REG settings for RDS at each pressing of the button.

[TP/TEXT] button

Pressing briefly:
Switches TP and TA settings for RDS at each pressing of the button.

Press and hold:
Switches the title display of the sub display.

[SCREEN] button

Pressing briefly:
Switches the PND display between navigation functions and audio functions.

Press and hold:
Turns the PND display off.

[Release] button

Detaches the right end of the PND from the body of the main unit.

[Reset] button

Resets the unit.
