Using the Audio Cover
Using the Audio Cover
After removing the PND from the main unit, it is recommended that you use the optional Audio Cover which comes with TRK-107p* to prevent the connector from stain.
* TRK-107p: Sold separately

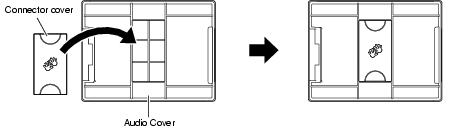

How to Insert the Audio Cover
1.
Insert the left end of the Audio Cover into the main unit.
Engage the catch at the left end of the Audio Cover with the lock on the main unit.
2.
Insert the Audio Cover.
Press the right end of the Audio Cover until it clicks into place.
How to Detach the Audio Cover from the Main Unit
1.
Press the [Release] button.
The right end of the Audio Cover detaches from the body of the main unit.
2.
Remove the Audio Cover.
Hold the Audio Cover on the right side, lift up and pull it toward you to remove it.
