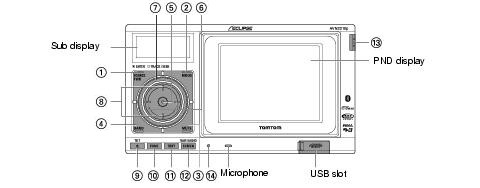

[SOURCE/PWR] button

Pressing briefly:
Switches the items in the audio mode.

Press and hold (more than one second):
Turns the audio mode OFF.

Press and hold (more than 5 seconds):
Turns the power completely OFF.

[MODE] button

Pressing briefly:
Switches to the preset channel select mode or CD track select mode (Also known as the "rotary select mode").

[MUTE] button

Activates and deactivates mute.

[BAND] button

Switches radio bands.

[ENTER] button

Enters selected item. Activates and switches the audio control mode.

[SELECT (Right/Left)] button

Selects radio station and CD tracks. Select setting items. In function mode, select setting items.

[VOL] rotary knob

Adjusts volume. In rotary select mode, select the item you want.

[SELECT (Upper/Lower)] button

Selects the folder in CD (MP3/WMA) mode.

[ (OPEN/EJECT)] button

Pressing briefly:

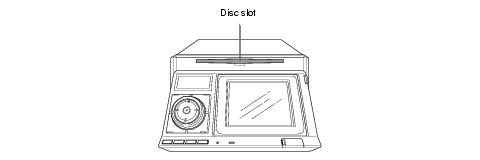

Ejects disc or opens/closes the front panel.

Press and hold:
Tilts the front panel by one step at each pressing of the button.

[FUNC] button

Pressing briefly:
Switches the items in the FUNCTION mode at each pressing of the button.

[TEXT] button

Pressing briefly:
Switches title display of sub display.

[SCREEN] button

Pressing briefly:
Switches PND display between navigation functions and audio functions.

Press and hold:
Turns the PND display off.

[Release] button

Detaches the right end of the PND from the body of the main unit.

[Reset] button

Resets the unit.
